Inicio /Productos/Conductor de la emergencia del LED/Adjustable Current Blink Freely Led Driver Shenzhen 60W HA-RF040BF-CC1050/S

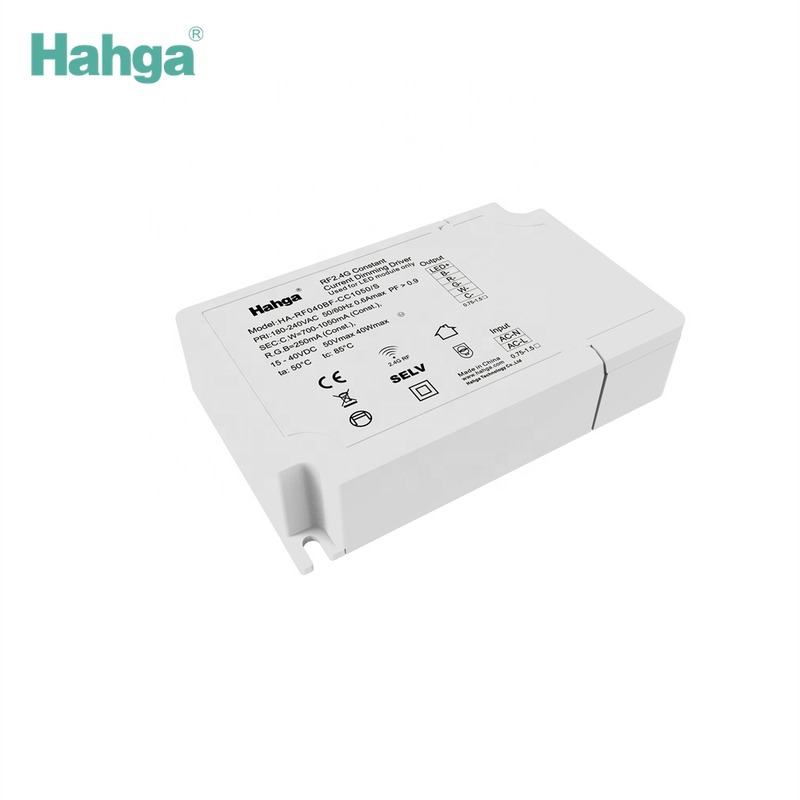

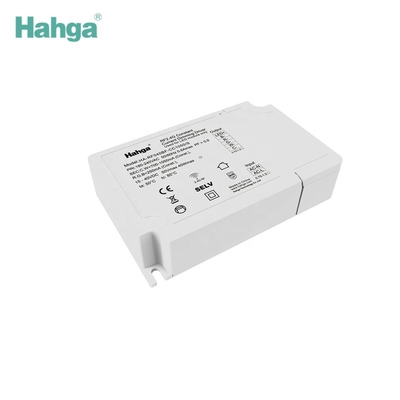

Adjustable Current Blink Freely Led Driver Shenzhen 60W HA-RF040BF-CC1050/S

1 Piece
MOQ
Adjustable Current Blink Freely Led Driver Shenzhen 60W HA-RF040BF-CC1050/S
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 100
Model Number: HA-RF040BF-CC1050/S
Output Power: 40W
Output Type: Single
Input Voltage: AC100-264V
Output Frequency: 50/60Hz
Output Current: 700-1050mA
Product Name: Constant Current Traic Dimmable LED Driver
PF: 0.9
Efficiency: 86%
THD: 10%
IP grade: IP20
Certificación: CE ROHS
Información básica
Certificación: CE ROHS
Model Number: HA-RF040BF-CC1050/S
Pago y Envío Términos
Packaging Details: 1pc/box 20box/ctn
Supply Ability: 100000 Piece/Pieces per Month
Descripción de producto
Hahga
Products Description
Model
HA-RF040BF-CC1050/S
HA-WF040BF-CC1050/S



Input
Voltage Range
AC100-264V
Limited Voltage
264VAC
Power Factor
>0.9
T.H.D
<10%
Efficiency
82%
86%



Output
Rate Power
40W
40W
Rate Current
700-1050mA dimmable
700-1050mA dimmable
DC Voltage
DC27-40V
DC27-40V
Current Accuracy
±3%
Power-on Time
<0.5s

Protection
Short Circuit
constant voltage mode, recover automatically after fault condition is removed
Over Loading
≤120% constant voltage limiting, recover automatically after fault condition is removed
Over Temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down


Others
Ta
50℃
Tc
85℃
IP rating
IP20
Life span
50000hours
Warranty
5years
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Company information
About Hahga
Hahga is specialized in R&D and manufacturing dimmable LED driver,non-dimmable LED driver and LED emergency driver. Hahga focus on indoor and waterproof IP67 dimmable LED driver,which includes Triac/Phase-cut dimming,0/1 10V,dimming,DALI,dimming,Push dimming,Bluetooth dimming,ZigBee dimming, Wifi Dimming,etc. Hahga products have been exported to numerous oversea markets with UL,ETL,FCC,ENEC,TUV-CE,CB,SAA,DALI-2,RoHS and other certificates.

PROFESSIONAL R&D and PRODUCTION

With advanced production equipment and standardized production management,the production capacity of 200,000 pieces per month can be guaranteed.
DALI Testing
Wave Soldering
Plug-in Components assembling
Reflow soldering

QUALITY ASSURANCE

Multi professional testing process and testing equipment to ensure product quality.
Safety Test
Aging Test
EMI Tester
In-Circuit Test System
Packaging & Delivery

DELIVERY ASSURANCE

Reasonable inventory plan and Official logistics cooperation to ensure fast shipping.
Warehouse
Delivery
Certifications
Related Products
FAQ
1. How about your goods’ quality? All products provided by Hahga with 100% burn-in tests, full round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL ENEC certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it? 5 years. If any failure caused by quality issue, we send replacement with next order, or refund.
3. What is your minimum order quantity? The MOQ is 1pcs.
4. Which payment terms you can accept? We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer? By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.
6. How about your delivery time? 3-7 working days according the order quantity.
7. Can you provided OEM Service? Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
