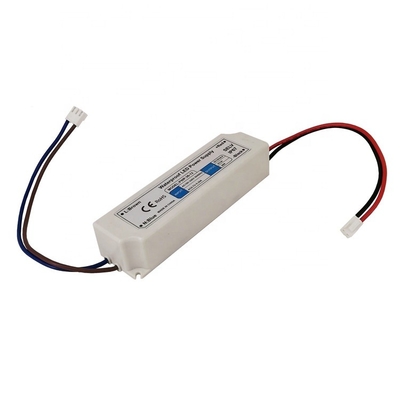

Name: IP67 Indoor and Outdoor Installations 36W 12VDC 3A 24VDC 1.5A Plastic Case LED Power Supply Single Output Waterproof Led Driver
Brand: IP67 Indoor and Outdoor Installations 36W 12VDC 3A 24VDC 1.5A Plastic Case LED Power Supply Single Output Waterproof Led Driver
SKU: PWP-36-12
Price: 1 USD
Availability: InStock
Rating: 4.9 (192 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty(Year): 3-Year

Lighting solutions service: Lighting and circuitry design, Project Installation

Model Number: PWP-36-12

Output Power: 36W

Output Type: Single

Input Voltage: 100-240VAC

Output Frequency: 50/60Hz

Output Current: 3a

Type: Constant Voltage Led strip power supply 12V 24V

Dimension: 150*40*30mm

Weight: 0.31kg

IP Rate: IP67

Usage: Indoor and Outdoor Installations

Protections: Short Circuit Overtemp Overload Overvolt

Case material: Plastic case

Efficiency: 86%

Certificación: CE & ROHS

Warranty: 3-year-warranty

Información básica

Certificación: CE & ROHS

Model Number: PWP-36-12

Pago y Envío Términos

Packaging Details: CARTON BOX (46CM*39CM*27CM}

Supply Ability: 20000 Piece/Pieces per Day

Descripción de producto

36W Plastic Case LED Power Supply 12VDC 3A 24VDC 1.5A Single Output IP67 Waterproof Led Driver

FEATURES:

Constant voltage design.

Power supply for LED strip lights,LED display etc.

Over voltage protetion 115%~135%,shut off.
Short circuit protection, stable output voltage.
Withstand 300VAC surge input for 5 seconds
Working temperature -35℃~+55℃
20,000 hours long life and high reliability
Built in EMI filter
Fully encapsulated with IP67 level
Higher efficiency, low temperature.
100% full load burn-in test .
Cooling by free air convection
CE&RoHS certificates, 3 years warranty

DATA SHEETS:

Product No.		PWP-36-12	PWP-36-24
Output	DC voltage	12V	24V
	Rated Current	3A	1.5A
	Current Range	0-8.3A	0-4.17A
	Rated Power	100W	100W
	Ripple and Noise(Max)Note.2	150mVp-p	240mVp-p
	Voltage adjustment	10.8-13.2V	22-27.6V
	Voltage Accuracy Note3	±1%	±1%
	Linear Adjustment Note4	±0.5%	±0.5%
	Load Adjustment Note5	±0.5%	±0.5%
	Start and rise time	1000ms,30ms/230VAC 1000ms,30ms/110V
	Hold time(Typ)	50ms/230VAC 10ms/115AC
Input	Voltage range	176-264AC/250-360VDC
	Frequency range	50HZ
	Efficiency(Typ)	80%	81%
	AC current (Typ)	1.42A/176V 1.1A/220V
	Surge current (Typ)	Cold Start:65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Larger than 105% of capacity
		restoration after abnormity removed
	Overvoltage

	Overheat

Environment	Working temp.	-20~+60℃(Refer to the tenuation curve)
	Working humidity	20~90% RH, without condense
	Storage temp & hmdty	-40~+80℃
	Temp. coefficient	±0.03%/℃ (0~50℃)
	Vibration proof	10~500HZ,5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC (Note.6)	Safety regulation	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O/P:1.5KVAC
	insulation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
Packing Details	Dimensions	1504030m(LWH)
	Packing	0.318kg/PCS;60CS/20kg
Notes:	1. Unless specially indicated, all data are taken under 230VAC input, rated load and 25℃ environment temp.
	2.Ripple and noise: measured with a 12” double ripple cord connected in parallel with a 0.1μF and a 47 μF capacitor on 20MHz bandwidth.
	3.Accuracy: including preset errors, linear adjustment rate and load adjustment rate.
	4.Linear adjustment: taken under rated load from low voltage to high voltage.
	5.Load adjustment: taken under 0~100% of rated load.
	6. Power supply is taken as part of the whole system, and needs to be confirmed with terminal instruments for EMC.
