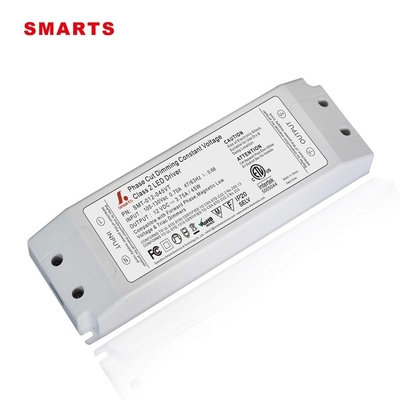

Name: 40w Dimming Constant Voltage Led Driver 110v 180*60*34mm Electric Driver 12v AC Dimmable Transformers
Brand: 40w Dimming Constant Voltage Led Driver 110v 180*60*34mm Electric Driver 12v AC Dimmable Transformers
SKU: SMT-012-045VT
Price: 1 USD
Availability: InStock
Rating: 5 (154 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty(Year): 5-Year

Lighting solutions service: Lighting and circuitry design

Model Number: SMT-012-045VT

Output Power: 45w

Output Type: Single

Input Voltage: 100-130V/170-265V

Output Frequency: 47-63HZ

Output Current: 3.75A

Certificación: UL(E507826),CE,FCC,ROHS approval

Warranty: 5 Years

Efficiency: 86%

Size: 180*60*34mm

Dimming Mode: triac dimmable

PF: >0.95

Waterproof level: IP20

outer case: plastic

Weight: 320g

electric dimmable transformers: 40w dimming constant voltage led driver 110v ac 12v dc

Información básica

Certificación: UL(E507826),CE,FCC,ROHS approval

Model Number: SMT-012-045VT

Pago y Envío Términos

Packaging Details: inner box-white box + outer carton- standard exporting carton for electric dimmable transformers

Supply Ability: 300000 Piece/Pieces per Month for electric dimmable transformers

Descripción de producto

40w dimming constant voltage led driver 110v ac 12v dc electric dimmable transformers

Product Description

100-130Vac ETL\FCC\IP20
180-265Vac\SAA C-TICK\IP20
100-130Vac UL(E507826)\IP20

click for more information

Specifications

1. AC-DC Triac Dimmable LED Driver

2. Wide input volt and freq: 100-130vAC/170-265vAC /47~63Hz

3. Ambient temp.:-20 degree~40 degree @ full load

4. Efficiency > 86%

5. PF>0.7

6. Size: 180*60*34mm

7. Waterproof rate: IP40

8. Packing: 20pcs/ctn

9. Vi=110/220V

10.THD:<10%

11. Warranty: 5 years

12. Isolated Designing solution

Product Features

1. Universal AC input (100~265V)

2. Protections: Short circuit/Overload/Over voltage/Over temp.

3. Built-in active PFC function

5. designing standard: Ul1310 Class 2 power unit

6. Cooling by nature

7. Suitable for dry location

8. Suitable for LED lighting and moving sign applications

9. Follow the global lighting safety regulations

Environment

1. Working temperature:-40 -80°C

2. Store temperature:-40 -85°C

3. Working humidity:10-90%

4. Lifespan:(MTBF)50,000 hours

5. Case machine specifications

6. Case: plastic case

Safety

a. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529

b. Withstand Voltage : I/P-O/P: 3000KVAC

c. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

parameters

Item No.	Input voltage (vAC)	Working Frequency (Hz)	Output voltage (vDC)	Output Current (A/mA)	Power (Watt)	Working Temp.	IP Rate
SMT-012-045VT	90-135vAC /170-265vAC	47~63Hz	12V	3.75A	45W	-25~50°C	IP40
SMT-024-045VT	90-135vAC /170-265vAC	47~63Hz	24V	1.87A	45W	-25~50°C	IP40
SMT-036-045VT	90-135vAC /170-265vAC	47~63Hz	36v	1.25A	45W	-25~50°C	IP40

Applications

Our products are widely used in various industries, such as

a. Indoor/outdoor LED illuminating lights,

b. LED Neon,

c. LED urban Decoration

d. LED Lighting Advertising,

e. LED Display,

f. Safety Protection Apparatus,

g. Telecommunications,

h. Networks,

i. Vehicle Lights, Controller Panels, etc

click for more information
